Home > PRODUCTS > Cable Cutters >
A-520

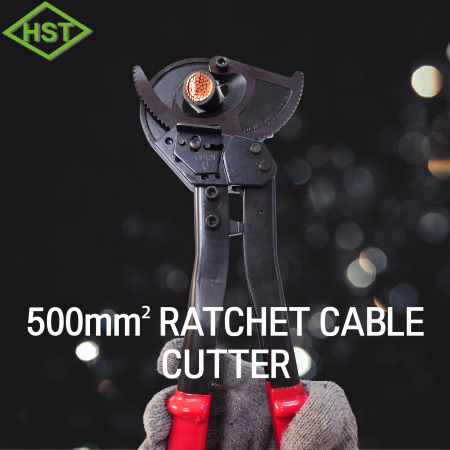

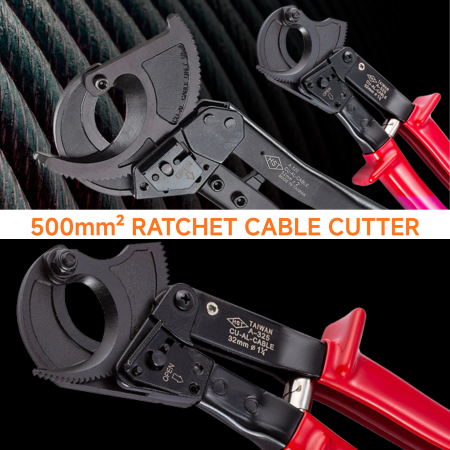

500mm2 RATCHET CABLE CUTTER
Feature:
Ratchet cable cutters are tools that use a ratchet mechanism to cut thick copper and aluminum cables in a effort-saving manner. They are mainly used in power installation, communication maintenance or repair.

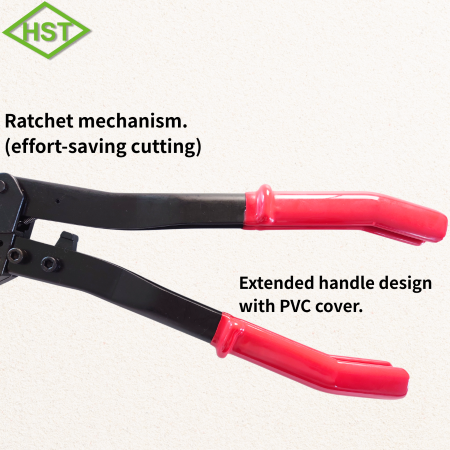

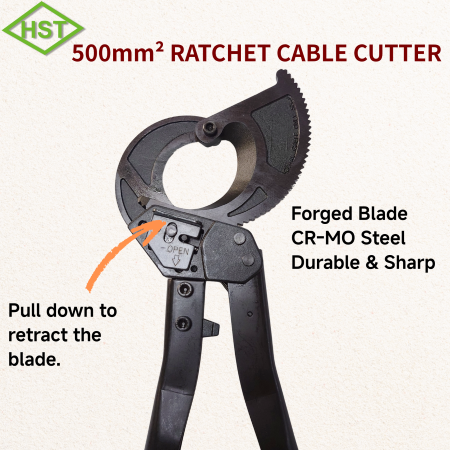

A-520 is made of CR-MO(SCM440) alloy steel, featuring a sharp and durable blade. When cutting with New Wealth forged blades, the cut surface can be smooth, preventing the cable deforming or splitting. Furthermore, the ratchet mechanism and extended handle design make cutting easier and effort-saving.
(❌ Not applicable to steel core, steel cable, steel wire)
◎ Material:
Head CR-MO SCM-440 (HRC 54-56).
Blade & body S55C (HRC62).
◎ Precision forged and heat-treated, five-axis making cut blades, durable and not easily broken.
◎ Cutting capacity:
IV CV 500mm2 (diameter 35mm) (1000MCM) cable
600V CV 500mm2 (diameter 38mm) cable
3KV CV 150X3C (diameter 46mm) cable
6KV CV 100X3C (diameter 52mm) cable
◎ Full series of Cable Cutters:

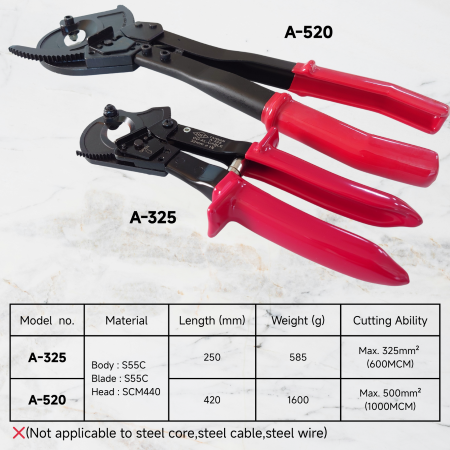

1.Ratchet type: A-325, A-520.
2.Heavy-duty type: A-240C, A-240B...
3.Portable type: A-184,A-184A,A-185,A-186,A-101S.
◎ Video ☛ Click to see how to use.
-
-
Model no.:
A-520
-
Full length:
420mm
-
Material:
Head：SCM440
Handle：PVC -
Hardness:
Head：HRC 54-56
Blade：HRC62 -
Packing:
1pcs / inner box
10pcs / carton -
Weight:
N. weight : 16 kg
G. weight : 17 kg
Dimensional weight : 1.5 cuft
-
